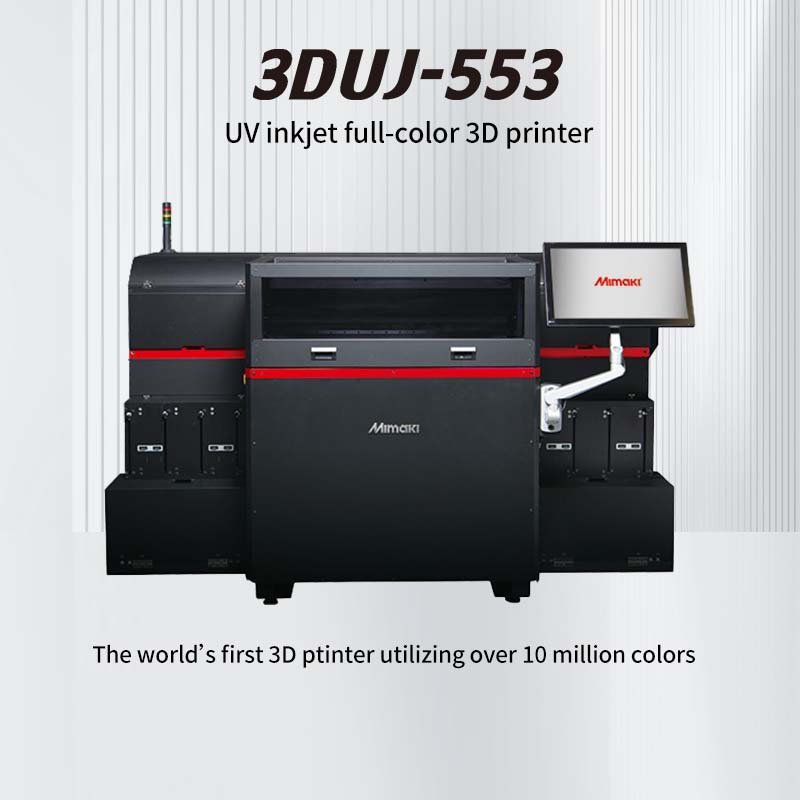

3DUJ-553 3D printer
Photorealistic color accuracty
- Vivid full-color shaping with over 10 million colors
- Exquisite shaping that emphasizes complex shapes and details
- It can also be shaped in an office environment
Contact us for shipping, installation, tariffs and warranty..
Available modeling area

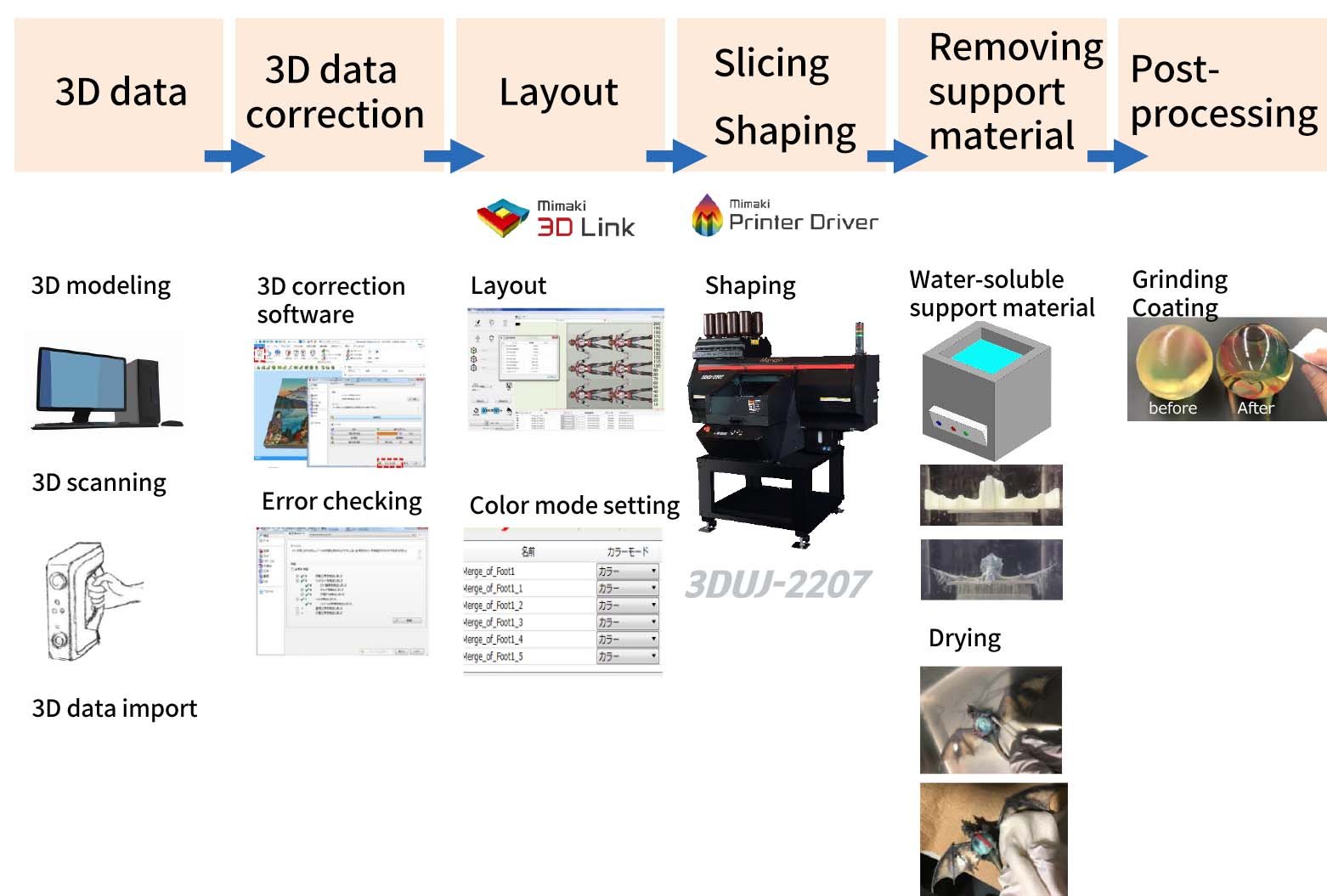

Process Flow
Benefits & Features
More than 10 million colors and UV-curable inkjet printing!
The growth of the 3D printer market began in North America and Europe and continues to spread globally, with applications primarily concentrated in the manufacturing sector, then gradually penetrating into education, architecture, and healthcare.
The Mimaki 3D printer [3DUJ-553], based on our proprietary professional-grade 2D inkjet printer technology, achieves a world-first*1 full-color modeling capability exceeding 10 million colors.
We will launch a new business utilizing the [3DUJ-553] because its rich color expression is ideal for creating final products, such as physical signage or architectural models, which are difficult to color after modeling.
Product Overview
- The world’s first full-color printer with over 10 million colors.
- Mimaki’s sophisticated technology enables exceptionally detailed modeling.
- Surface coating and drilling capabilities are available, enabling superior post-processing performance.
- The pursuit of “easy manufacturing” usability is ensured.
- Operational support is ensured to minimize losses.
Specifications
| Item | 3DUJ-553 | ||||
|---|---|---|---|---|---|
| Modeling method | UV curable inkjet | ||||
| Colors | Full color / More than 10 million different colors | ||||
| Print head | On-demand piezoelectric print head 8 head inline | ||||
| Ink | Type | Modeling ink MH-100 (C,M,Y,K, White, Clear) Modeling ink MH-110 (Pure Clear) Support material ink SW-100 | |||
| Tank volume | C,M,Y,K :3L White, Clear, Pure Clear, Support material :5L | ||||
| Supply | C,M,Y,K :1L bottle White, Clear, Pure Clear, Support material :4.8L bottle | ||||
| Available modeling area (WxLxH) | 508×508×305mm (20x20x12in) | ||||
| Minimum layer thickness | 20㎛ | ||||
| 3D data format | STL,OBJ,VRML,PLY,3MF | ||||
| Software (standard accessories) | Layout software [Mimaki 3D Link] | ||||
| Interface | Ethernet 1000BASE-TX | ||||
| Power | Single-phase 100-120/220-240 VAC ±10%, 50/60Hz ±1Hz x3 (Unitx1 / Monitor x1 / External PCｘ 1) | ||||
| Power consumption | 1600W or less | ||||
| Safety standards | VCCI Class A/FCC Class A/ Compliant with UL60950, ETL / CE Marking（EMC, Low Voltage Directive） / CB Report/ RoHS/REACH | ||||
| External dimensions (W×D×H) | 2,250×1,500×1,550mm (88.6x59.1x61.0in) | ||||
| Weight | Weight 600 kg (1,322.8 lb.) | ||||
