MIMAKI CFL-605RT – RECOLOR PRINTER

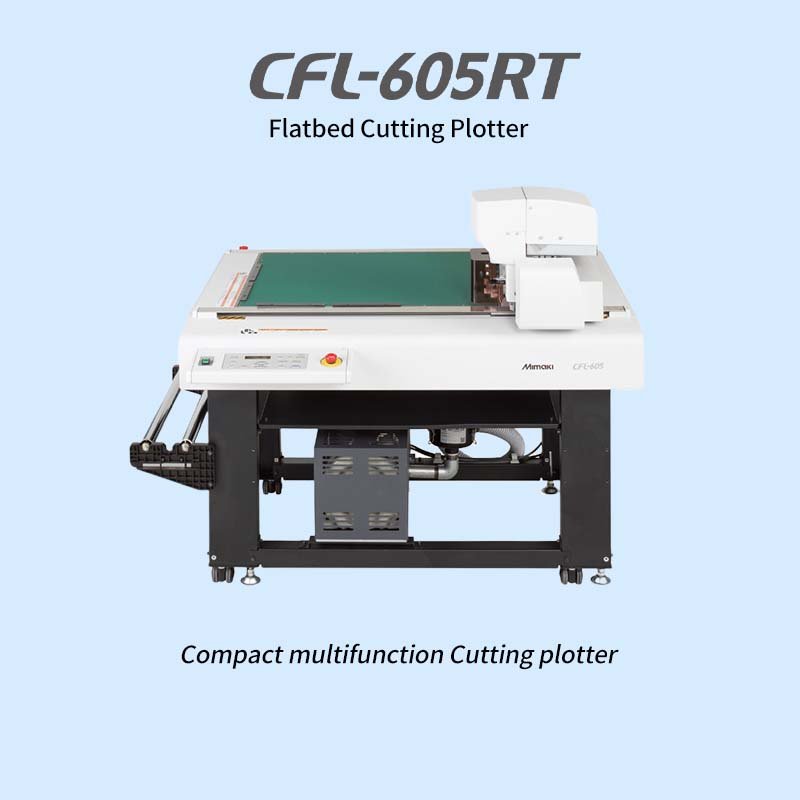

CFL-605RT Flatbed Cutting Plotter

Compact multifunction flatbed cutting plotter

Contact us for shipping, installation, tariffs and warranty..

Composite materials etc. can be half-cut
Half-cut and Die-cut
Mark-sensor function

FUNCTION

Software that enhances the performance of Mimaki cutting plotters

Benefits & Features

Use CF2 to achieve multi-type small batch production.

The CFL-605RT supports materials up to A2 Extra and offers a variety of cutting and creasing functions, including off-center, tangential, and reciprocating cutting. Designed with proven Mimaki technology, it supports a variety of cutting and creasing functions, enabling on-demand production. The CFL-605RT enables efficient sample and packaging production.

Multifunctional plotters strongly support digital on-demand production

Eccentric cutting
Tangential cutting
Reciprocating cutting
Creasing

Application:

Sign & Display
POP
POS Display
Package
Industrial Cut

Printing Materials:

Seam panels
Foam materials
Plastic tape
FPC boards
Full-size panels
Laminated POP
Signage
Coated boards
Toys
Decorative boxes
Double-sided corrugated cardboard

Specifications

Item		CFL-605RT
Driving method		X/Y/Z/θ 4 axes: DC servo motor
Material holding method		Air suctioning by a vacuum unit
Maximum media		630mm×530mm
Cutting area		610mm×510mm
Maximum cutting speed		XY: 423 mm/s (45° angle direction) Z: 30 mm/s
Maximum downforce pressure		Eccentric cutter:1,000g / Tangential cutter and Creasing roller: 1,500 g
Maximum media thickness		Reciprocating cutter: 10 mm / Tangential cutter: 2 mm
Maximum media weight		10 kg / 22lb (This is not one-point-load strength)
Static accuracy	Repetition accuracy	0.2 mm or lower (Material shrinkage is ignored)
	Distance accuracy	Moving distance × ±0.2% or lower or ±0.1 mm or lower Larger value is applied
	Origin repetition accuracy	±0.1 mm(0.004")
A unit		Attachable tools: Eccentric cutter, Pen
B unit		Attachable tools: Reciprocating/Tangential cutter, Creasing roller
Command		MGL-Ⅱc3
Interface		USB 2.0(High Speed), RS-232C, Ethernet
Power specification		Single phase AC 100–120 V/200–240 V, 50/60 Hz
Noise level		70 db or lower(The maximum level is generated while a reciprocating cutter or a vacuum blower is used.)
Power consumption		500W
Dimensions (W×D×H)		1,320mm×1,045mm×1,100mm
Weight		109 kg or lower (Blower, 20 kg, included)
Certifications		VCCI class A, CE marking (Machinery directive, RoHS directive), CB, UL 60950-1, REACH, FCC class A
