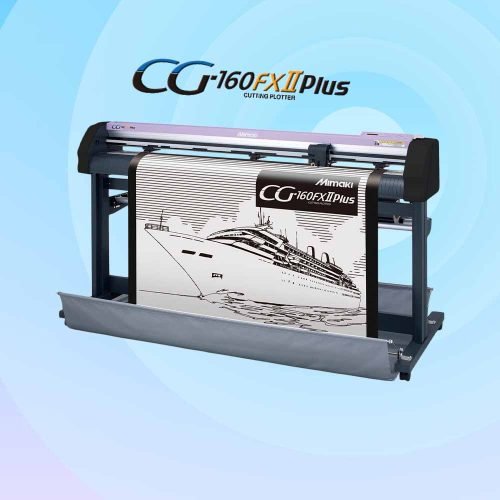

CG-160FXII Plus
Roll to Roll Cutting Plotter
Contact us for shipping, installation, tariffs and warranty..
- Effective cutting area 1,720 mm (67.7”)
MIMAKI Technology
Benefits & Features
World standard of multi-function cutting plotter
The CG-FXII Plus is a brand-new model, succeeding the CG-FXII.
The newly added “ID Cut” function helps streamline processes and improve printing efficiency.
It can also cut cut paper to create cut characters.
It can also cut along the contours of graphics printed by an inkjet printer to create seals, stickers, and labels.
The CG-FXII Plus series offers easy operation and a reasonable price, ensuring your creative work continues smoothly.
Product Overview
Achieving the highest cutting pressure of 500g in the entry-level product category, expanding the range of materials that can be cut.
Maximum cutting speed is 105% of the previous generation, delivering enhanced productivity.
Added a full cardboard cutting option.
Equipped with an ID cutting function, it seamlessly works with Mimaki printers for efficient printing and cutting.
Mimaki Remote Access (MRA) allows for remote viewing of machine operating status and panel operation.
Specifications
| Item | CG-160FXII Plus | ||||
|---|---|---|---|---|---|
| Applicable media width | 90 - 1,880 mm (3.54 ‒ 74.0”) | ||||
| Cuttable area | 1,720 mm (67.7”) | ||||
| Maximum speed | 140cm/s (In a 45° direction and in a pen-up state) | ||||
| Set pressure | Cutter | 10 - 20 g (2g step), 20 - 100 g (5 g step), 100 - 500 g (10 g step) | |||
| Pen | 10 - 20 g (2g step), 20 - 100 g (5 g step), 100 - 150 g (10 g step) | ||||
| Pin | 10 - 20 g (2g step), 20 - 100 g (5 g step), 100 - 500 g (10 g step) | ||||
| Settable speeds | 1 ‒ 10 cm/s (1 cm/s step), 10 - 50 cm/s (5 cm/s step) 50 - 100 cm/s (10 cm/s step) | ||||
| Mechanical resolution | 5 μm (0.0002”) | ||||
| Program step | |||||
| Repetition accuracy | ±0.2mm (0.0079”) | ||||
| Accuracy guarantee range | 1,600 mm × 10 m 63.0” x 0.39” | ||||
| Commands | MGL-Ⅱc / Ⅰc1 | ||||
| Interface | USB, RS-232C | ||||
| Receive buffer capacity | 30Mb standard（20Mb when in sorting） | ||||
| Power supply | AC 100 - 240 V 1A 50/60Hz 108W or less | ||||
| Dimensions (W × D × H) | 2,125 × 700 × 1,217 mm 83.6 x 27.5 x 47.9” | ||||
