JFX600-2513EX UV Printer
The “JFX600-2513 EX” is a large-format flatbed UV inkjet printer that further pursues speed and quality, two key factors required of a large-format printer.
- 16 Pcs Print Heads
- Max. Printing Size 2500mm×1300mm
- LUS120/LH100/LUS150 Ink
Contact us for shipping, installation, tariffs and warranty..
Printing Speed
JFX600-2513 Printer 4C printing
| Model | Resolution | Pass | Printing Speed (m2/h） |
|---|---|---|---|
| Draft | 600×600dpi | 2 | 200 |
| Production | 600×600dpi | 4 | 90 |
| Standard | 600×1200dpi | 8 | 56 |
| Quality | 1200×1200dpi | 8 | 35 |
JFX600-2513 Printer 4C+spot color printing
| Model | Resolution | Pass | Printing Speed (m2/h） |
|---|---|---|---|
| Draft | 600×600dpi | 2 | 120 |
| Production | 600×600dpi | 4 | 52 |
| Standard | 600×1200dpi | 8 | 33 |
| Quality | 1200×1200dpi | 8 | 18 |
JFX600-2513 Printer 6C+spot color printing
| Model | Resolution | Pass | Printing Speed (m2/h） |
|---|---|---|---|
| Draft | 600×600dpi | 4 | 110 |
| Production | 600×600dpi | 8 | 45 |
| Standard | 600×1200dpi | 16 | 30 |
| Quality | 1200×1200dpi | 16 | 17 |
MIMAKI Technology
Ink Color Configuration

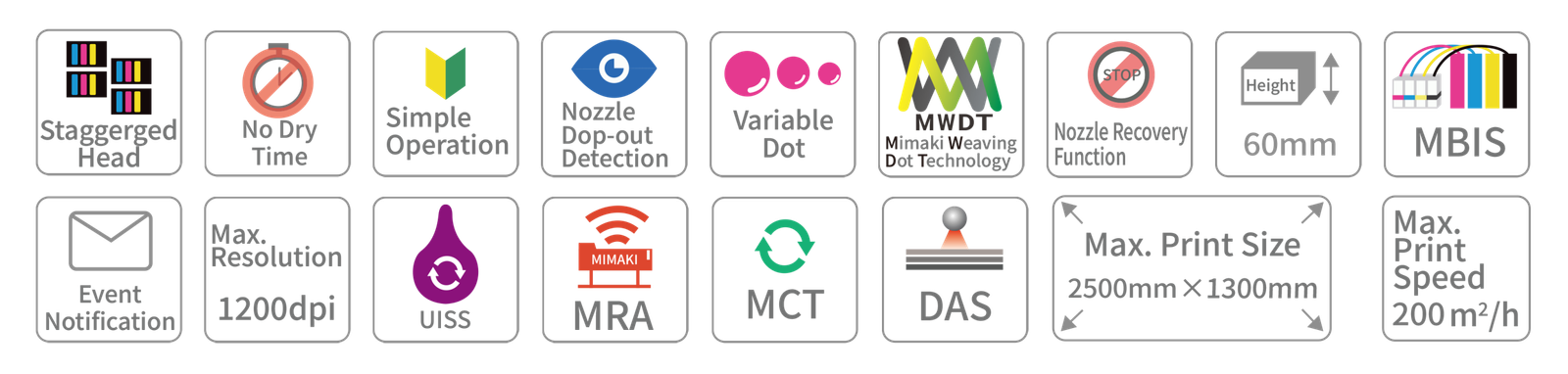

Benefits & Features
High speed and High quality: Max. print speed 200m²/h, 6-color ink. Large format UV-LED Flatbed inkjet printer “JFX600-2513”
- Print speeds are 330% faster than the JFX500, boosting productivity.
- Six colors are available, including light colors.
- Both models have GREENGUARD Gold certified UV inks.
- The MPC features a graphical user interface.
- Designed with ease of use in mind: the worktable size and vacuum suction surface support media up to 60 mm thick.
- Utilizes reliable Mimaki technology.
- Diverse expression methods enhance print value.
- Optional 3L ink supply system: Increases productivity by reducing frequent ink changes.
- Supports “MDL commands” for automation and labor-saving printing processes, including workpiece handling.
Core Technologies:
- Waveform Control
- Mimaki Advanced Pass System
- Nozzle Check Unit
- Nozzle Recovery System
- Mimaki Circulation Technology
- Mimaki Fine Diffusion
Applications:
- Acrylic ♦Nameplate ♦Cultural and creative ♦Membrane switch ♦Water bottle ♦Mobile phone case ♦Box printing ♦Animation peripherals (acrylic, leather) ♦Nameplate printing ♦Gift box (silver ink application) ♦Photo album ♦Acrylic display board ♦Map (high-definition printing) ♦Small print ♦Dial printing ♦Image logo ♦Braille ♦Advertising billboard ♦Signboard ♦Packaging ♦Iron painting ♦Decorative painting ♦Toys ♦Wood board printing ♦Glass ♦Wall decoration
Specifications
| Item | JFX600-2513 |
|---|---|
| Print head | 16 Pcs Print Heads |
| Printing resolution | 1200 × 1200 dpi maximum |
| Ink Type/color | LH-100/LUS120 (C, M, Y, K, W, Cl, Lc, Lm)/ LUS-150LUS-211 (C, M, Y, K, W, Cl) PR-200 (primer) |
| Media thickness | 60mm (2.4 in) or less |
| Interface | USB2.0/Ethernet |
| Power supply | Single phase AC200-240V, ±10%, 24A, 50/60Hz ±1Hz |
| Power consumption | 4800W or less |
| Operation environment | 20°C to 30°C (68°F to 86°F)/35 to 65% RH (No condensation) |
| RIP Software | RasterLink7 |
| External dimensions (W × D × H) | 5,300× 2,850 × 1,700 mm/ 208.7 × 112.2 × 66.9 in |
| Weight | 1200 kg / 2645.5 lb |
| Options | Ionizer kit/ Optional blower Connector Kit/ 3L ink supply option |
