JV330-160 Plus Printer
Wide-format Inkjet Printer for Solvent / Water-based Sublimation Inks
Contact us for shipping, installation, tariffs and warranty..
- 2 Pcs Print Heads
- Max. Printing Size 1610 mm (63.4 in)
- BS3/BS4 /ES3/ SS21 / Sb54
Printing Speed
JV300-160 Printer 4 Color printing
| Model | Resolution | Pass | Printing Speed (m2/h） |
|---|---|---|---|
| Draft | 540×720dpi | 4 | 32.7 |
| High Speed | 540×720dpi | 6 | 24.6 |
| Standard | 720×1080dpi | 8 | 15.4 |
| High Quality | 720×1440dpi | 12 | 10.4 |
| Super Smooth | 1400×1440dpi | 16 | 4.3 |
JV300-160 Printer 8 Color printing
| Model | Resolution | Pass | Printing Speed (m2/h） |
|---|---|---|---|
| Draft | 540×320dpi | 6 | 22.7 |
| High Speed | 540×720dpi | 8 | 17.4 |
| Standard | 720×1080dpi | 12 | 10.5 |
| High Quality | 720×1440dpi | 24 | 5.3 |
| Super Smooth | 1400×1440dpi | 32 | 1.9 |
MIMAKI Technology

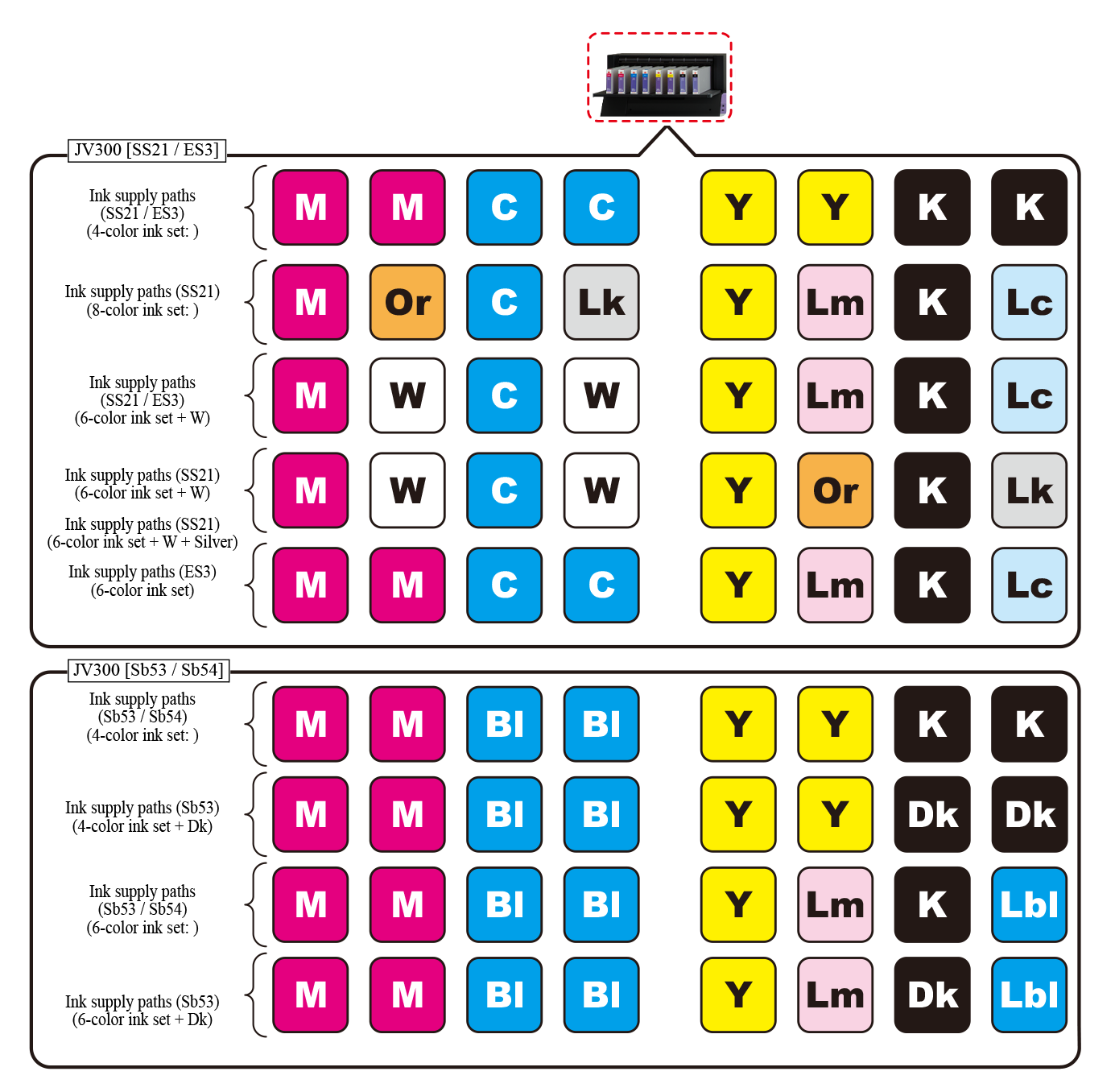

Ink Color Configuration
Benefits & Features
Pursuing high image quality and ease of use for everyone
Equipping the signage market with environmentally friendly solvent ink for large format inkjet printers.
The JV300Plus series is a new product launched after the JV300 series.
Environmental considerations, economic performance, and work efficiency have been added as “Plus” features and high functionality.
Three “Plus” functions
- ECO environmental protection function
- Labor saving processes and business efficiency
- New features to achieve higher image quality and stability
Core Technologies:
- Waveform Control
- Mimaki Advanced Pass System
- Nozzle Check Unit
- Nozzle Recovery System
- Mimaki Circulation Technology
- Mimaki Fine Diffusion
Printing Materials:
- Vinyl ♦Backlit ♦Advertising ♦Wallpaper ♦Decoration
- Stickers, labels, signage, wrapping films
Specifications
| Item | JV300-160 Plus |
|---|---|
| Print head | 1 Pcs Print Heads |
| Printing resolution | 360 dpi, 540 dpi, 720 dpi, 1080 dpi, 1440 dpi |
| Ink Type/color | BS3/BS4/ES3/SS21/Sb53/Sb54 |
| Media thickness | 1mm or less |
| Interface | USB2.0/Ethernet |
| Power supply | Single phase AC100-240V, ±10%, 12A, 50/60Hz ±1Hz |
| Power consumption | 1920W or less |
| Operation environment | 20°C to 30°C (68°F to 86°F)/35 to 65% RH (No condensation) |
| RIP Software | RasterLink7 |
| External dimensions (W × D × H) | 2,775× 700 × 1,392 mm/ 109 × 28× 55 in |
| Weight | 200 kg / 440.9 lb |
