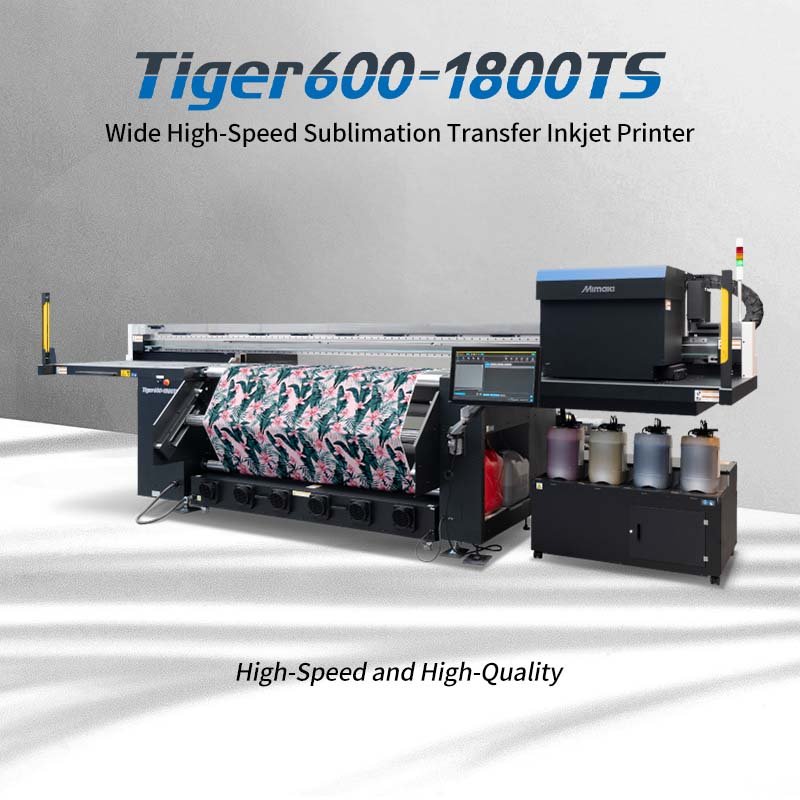

Tiger600-1800TS Sublimation Printer

Maximum output speed of 550 sqm/h (1,453 sq.ft/h)

Contact us for shipping, installation, tariffs and warranty..
  • 8 Pcs  Print Heads
  • Max. Printing Size 1850 mm (72.8 in)
  • MLSb510

Printing Speed

Tiger600-1800TS Printer 4 Color printing

ModelResolutionPassPrinting Speed (m2/h)
Quality300×600dpi1550
High Quality600×600dpi1310

MIMAKI Technology

Tiger600 FUNC

Ink Color Configuration

Tiger600-1800TS_head

Benefits & Features

High-Speed and High-Quality Digital Textile Printing

The Tiger600-1800TS thermal sublimation transfer inkjet textile printer, with its newly upgraded high-speed print head and independently developed image quality enhancement technology, achieves a maximum printing speed of 550 square meters per hour, a 143% increase over the previous generation, further facilitating the digital transformation of textile printing.

Product outlines

  • Maximum output speed reaches 550 square meters per hour.
  • Advanced transfer paper feed mechanism: Stable printing even with thin transfer paper.
  • Space-saving, lightweight design for easier installation.
  • Ink system design and support features ensure continuous and stable production.
  • Ultra-safe and environmentally friendly dye-sublimation transfer ink and dedicated textile software.
Core Technologies:
  • Waveform Control
  • Mimaki Advanced Pass System
  • Nozzle Check Unit
  • Nozzle Recovery System
  • Mimaki Fine Diffusion
Printing Materials:
  • Tapestry
  • Flag
  • Sports
  • Apparel
  • Interior Fabrics
  • Fashion Textile

Specifications

ItemTiger600-1800TS
Print head8 Pcs Print Heads
Printing resolution300 dpi, 600 dpi
Ink Type/colorMLSb510
InterfaceEthernet 10GBASE-T USB2.0
Power supply3φ 380-415V ± 5%, 50/60Hz ± 1%, 25A
Power consumption15,000W or less
Operation environment20°C to 30°C (68°F to 86°F)/35 to 65% RH (No condensation)
RIP SoftwareTxLink4 Standard / Professional
External dimensions (W × D × H)5,300×2,800 × 1,900 mm/ 209 × 110× 75 in
Weight1,620 kg / 3572 lb
