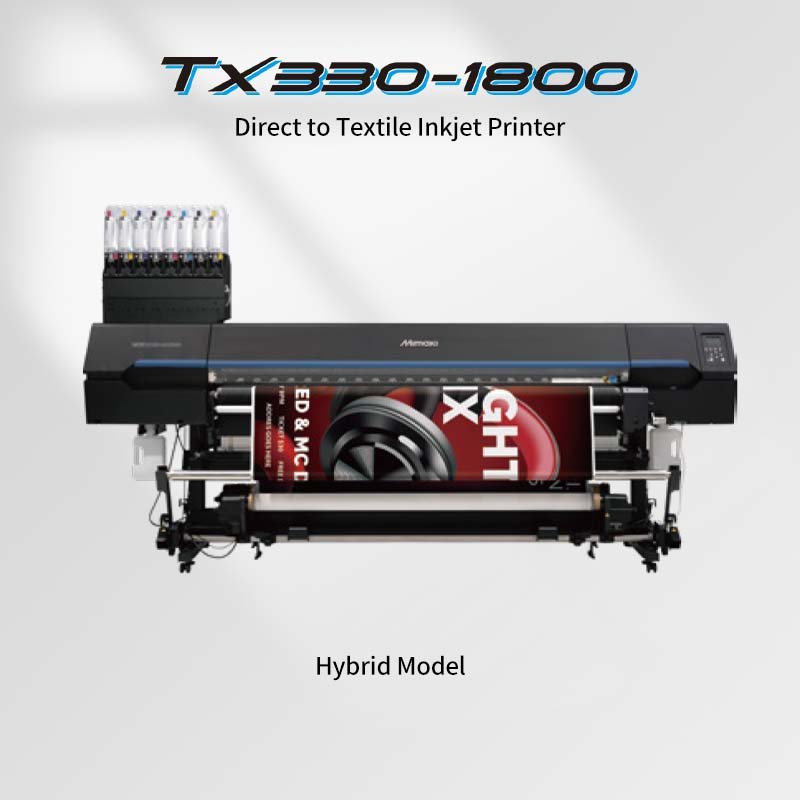

TX330-1800 Textile Inkjet Printer

Stable Printing on Stretchy and Thick Fabrics

Contact us for shipping, installation, tariffs and warranty..
  • 2 Pcs  Print Heads
  • Max. Printing Size 1940 mm (76.4 in)
  • Sb411/Sb420/TP410

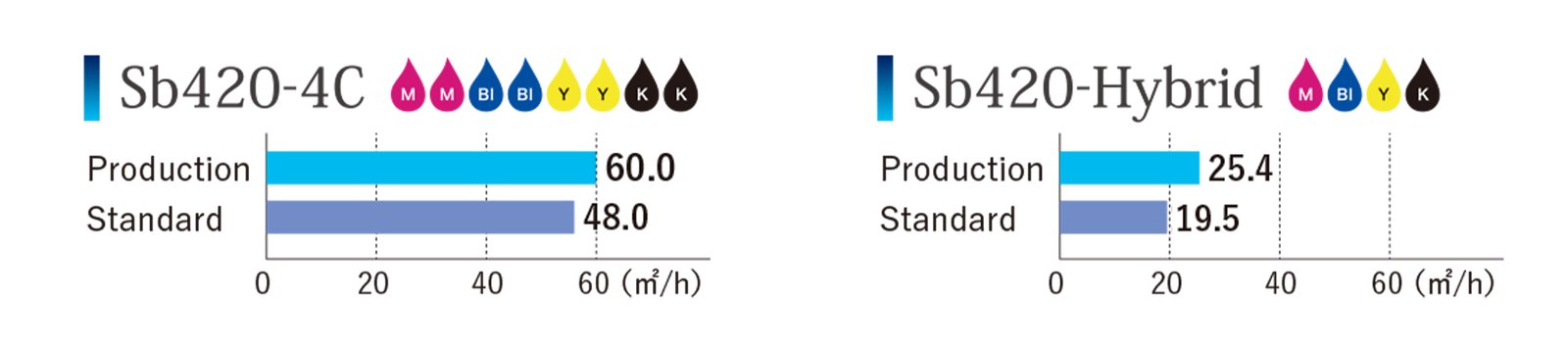

Printing Speed

Tx330 Speed

MIMAKI Technology

Tx330 FUNC

Ink Color Configuration

Tx330 Heads

Benefits & Features

Stable printing even on stretchable fabrics. 330 Series: Belt-fed 1.8m Direct-to-Textile Inkjet Printer

The Tx330-1800 is a hybrid textile inkjet printer capable of printing on both fabric and paper.

The operator can easily switch printers depending on the substrate being printed (fabric or transfer paper), enabling the production of products primarily focused on fabric signage and interior fabrics in a short period of time.

It can also print on wallpaper and poster paper, offering a comprehensive solution for businesses primarily producing fabric signage, helping them better coordinate with overall designs for store interiors and event booths.

Product outlines

  • Direct-to-textile printer using waterless textile inks

  • Equipped with the standard “330 engine” of our flagship model, achieving high density and high definition

  • A variety of models are available, depending on the type of fabric to be printed and the intended application.

  • Mixed ink sets significantly expand the range of applications.

  • Easily switch between the ink receiving pad and the platen. Print on transfer paper and fabric anytime, anywhere, with the functionality you need!

Core Technologies:
  • Waveform Control
  • Mimaki Advanced Pass System
  • Nozzle Check Unit
  • Nozzle Recovery System
  • Mimaki Fine Diffusion
Printing Materials:
  • Tapestry
  • Flag
  • Sports
  • Apparel
  • Interior Fabrics
  • Fashion Textile
  • Linen / Nylon
  • Hemp / Spandex
  • Canvas / Polyester
  • Cotton-Polyester / Cupro
  • Knit
  • Lycra
  • Powernet
  • Pile
  • Fashion Apparel
  • Apparel Merchandise
  • Bag
  • Interior Fabrics

Specifications

ItemTx330-1800
Print head2 Pcs Print Heads
Printing resolution300 dpi, 600 dpi, 900 dpi, 1200 dpi
Ink Type/colorSb411/Sb420/TP410
InterfaceEthernet 1000BASE-T, USB2.0
Power supplyAC100~120V/200~240V±10% 5A, 50/60Hz ± 1%,
Power consumption500W or less
Operation environment20°C to 30°C (68°F to 86°F)/35 to 65% RH (No condensation)
RIP SoftwareTxLink5 / RasterLink7
External dimensions (W × D × H)3,230×965× 1,857 mm/ 127.1 × 38× 73.1 in
Weight291 kg / 641.5 lb
