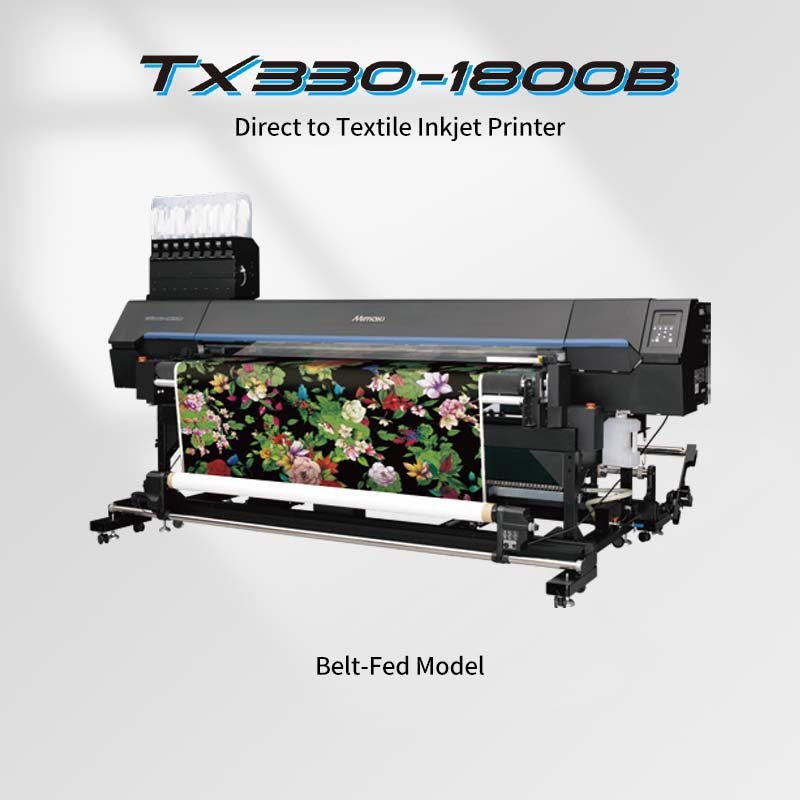

TX330-1800B Textile Inkjet Printer

Stable Printing on Stretchy and Thick Fabrics

Contact us for shipping, installation, tariffs and warranty..
  • 2 Pcs  Print Heads
  • Max. Printing Size 1890 mm (74.4 in)
  • Sb411/Sb420/TP410

Printing Speed

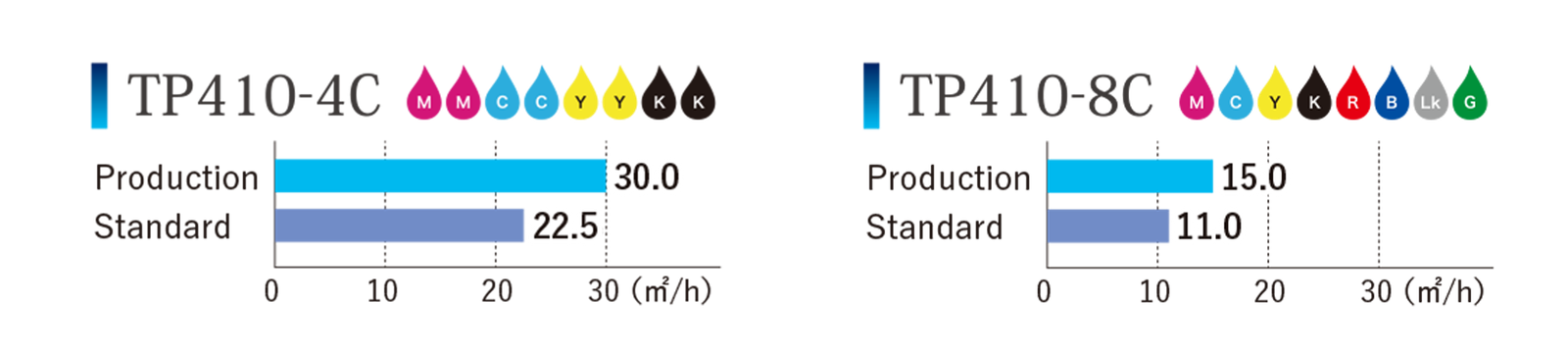

Tx330B Speed

MIMAKI Technology

Tx330B Plus FUNC

Ink Color Configuration

Tx330 Heads

Benefits & Features

Stable printing even on stretchable fabrics. 330 Series: Belt-fed 1.8m Direct-to-Textile Inkjet Printer

The Tx330-1800B is a textile printer featuring a space-saving belt conveyor system that enables stable printing on stretchable, thick, and thin fabrics commonly used in apparel.

It supports the production of small batches and a wide variety of garments in confined spaces, such as design offices, schools, and fabric retailers.

Product outlines

  • Direct-to-textile printer using waterless textile inks

  • Utilizes the standard “330 engine” from our flagship model, achieving high density and high definition.

  • A variety of models are available, depending on the type of fabric to be printed and the intended application.

  • Mixed ink sets significantly expand the range of applications.

  • The fabric is fed by a sticky tape, eliminating the need for external tension. High image quality ensures stable production of stretchy and thick fabrics commonly used in apparel.

Core Technologies:
  • Waveform Control
  • Mimaki Advanced Pass System
  • Nozzle Check Unit
  • Nozzle Recovery System
  • Mimaki Fine Diffusion
Printing Materials:
  • Tapestry
  • Flag
  • Sports
  • Apparel
  • Interior Fabrics
  • Fashion Textile
  • Linen / Nylon
  • Hemp / Spandex
  • Canvas / Polyester
  • Cotton-Polyester / Cupro
  • Knit
  • Lycra
  • Powernet
  • Pile
  • Fashion Apparel
  • Apparel Merchandise
  • Bag
  • Interior Fabrics

Specifications

ItemTx330-1800B
Print head2 Pcs Print Heads
Printing resolution300 dpi, 600 dpi, 900 dpi, 1200 dpi
Ink Type/colorSb411/Sb420/TP410
InterfaceEthernet 1000BASE-T, USB2.0
Power supplyAC100~120V/200~240V±10% 5A, 50/60Hz ± 1%,
Power consumption500W or less
Operation environment20°C to 30°C (68°F to 86°F)/35 to 65% RH (No condensation)
RIP SoftwareTxLink5 / RasterLink7
External dimensions (W × D × H)3,230×1,912 × 1,900 mm/ 127.1 × 75.2× 75 in
Weight622 kg / 1371 lb
