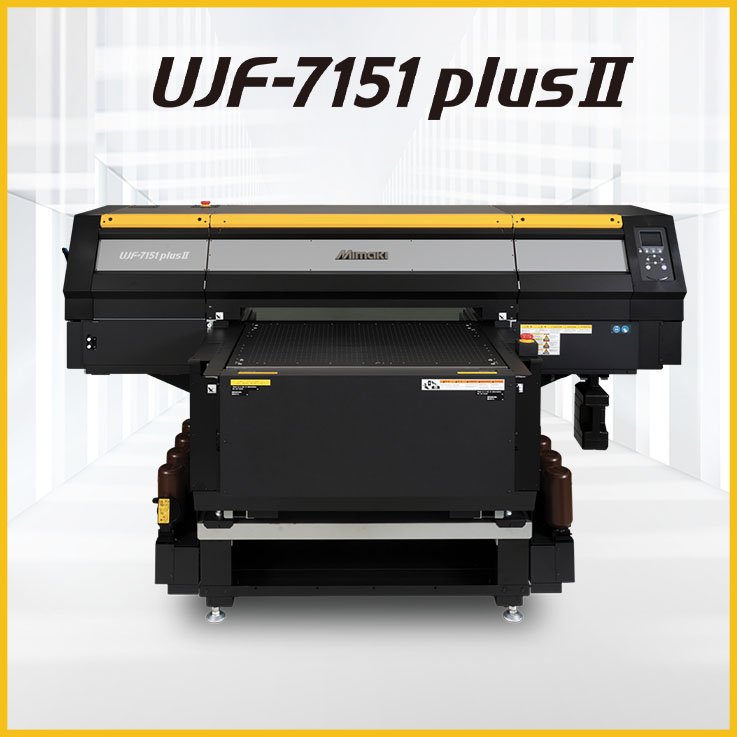

UJF-7151 Plus II UV Printer
It’s a flatbed UV inkjet printer that has further improved image quality and machine stability, while maintaining the operability that was highly acclaimed in the current model.
- 8Pcs Toshiba Print Heads
- Max. Printing Size 710mm×510mm
- LUS120/LH100/LUS350 Ink
Contact us for shipping, installation, tariffs and warranty..
Printing Speed
4 color + 4 Color printing
| Model | Resolution | Pass | Printing Speed (m2/h） |
|---|---|---|---|
| Draft | 600×600dpi | 6 | 8 |
| High-speed | 600×600dpi | 8 | 6 |
| Standard | 600×900dpi | 12 | 4 |
| Quality | 1200×1200dpi | 16 | 2 |
4 color + 2 spot color printing
| Model | Resolution | Pass | Printing Speed (m2/h） |
|---|---|---|---|
| Draft | 600×600dpi | 6 | 4.4 |
| Production | 600×600dpi | 8 | 3.2 |
| Standard | 600×900dpi | 12 | 2.2 |
| Quality | 1200×1200dpi | 16 | 1.1 |
| High Quality | 1800×1800dpi | 24 | 0.6 |
MIMAKI Technology

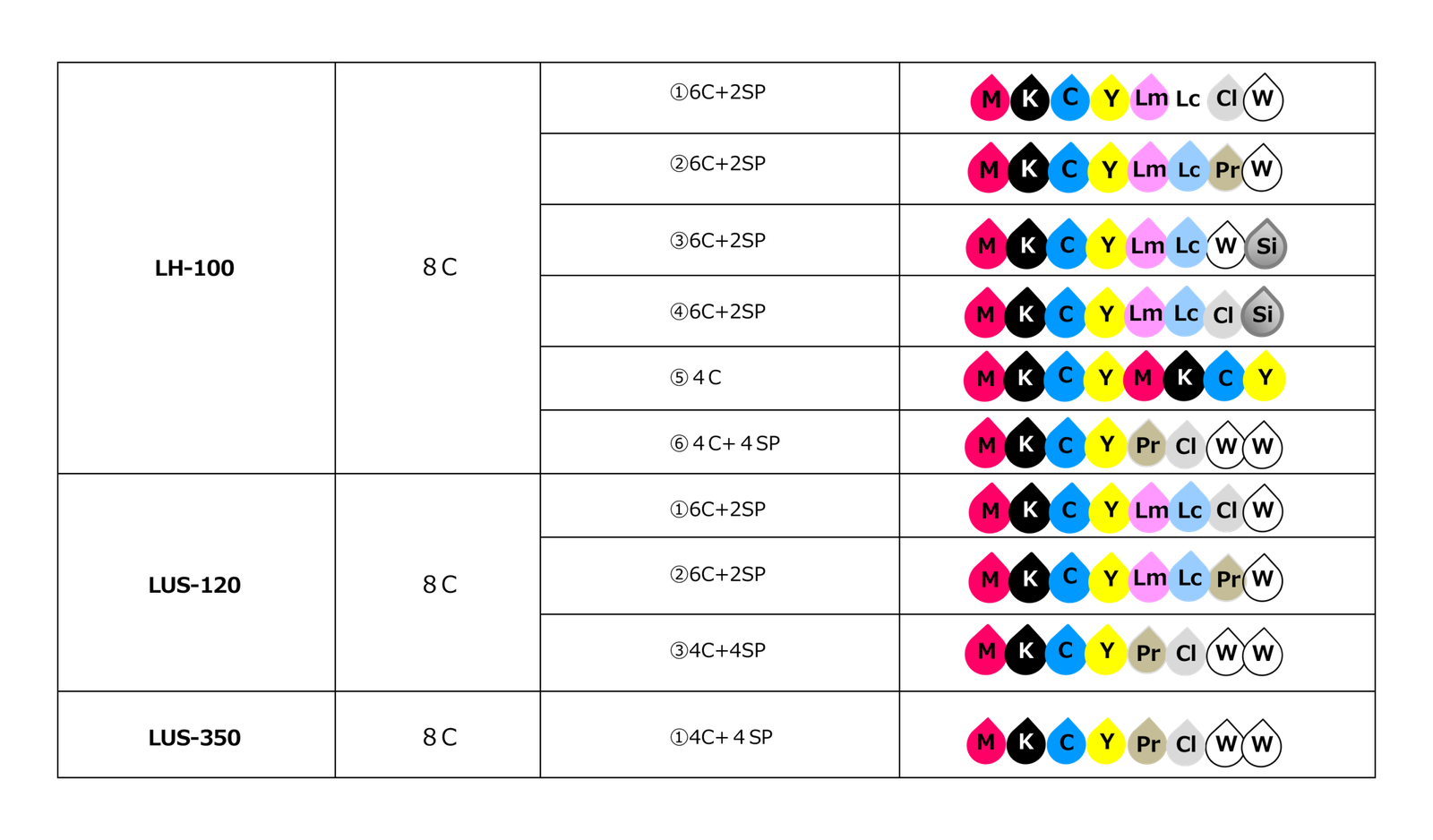

Ink Color Configuration
Benefits & Features
Powerful personalization on demand!
Designed to bring your ideas to reality, these professional tools deliver consistent quality for any level of production. You can create specialty items, awards, personalized products, component pieces and more.
- Print area: 28″ x 20″ ; up to 6″ thick
- Enclosed print area reduces dust contamination and UV exposure
- Eco-friendly with low VOC, Greenguard Gold Certified UV-LED Inks
- Pair with our desktop 3D printer to produce jigs, molds for thermoforming or custom molds!
- Mimaki Clear Control (MCC) for smoother, cleaner clear effects
- RIP Software (Rasterlink 7) and MDL included
- Enhanced Auto Maintenance Features
Core Technologies:
- Waveform Control
- Mimaki Advanced Pass System
- Nozzle Check Unit
- Nozzle Recovery System
- Mimaki Circulation Technology
- Mimaki Fine Diffusion
Applications:
- Acrylic ♦Nameplate ♦Cultural and creative ♦Membrane switch ♦Water bottle ♦Mobile phone case ♦Box printing ♦Animation peripherals (acrylic, leather) ♦Nameplate printing ♦Gift box (silver ink application) ♦Photo album ♦Acrylic display board ♦Map (high-definition printing) ♦Small print ♦Dial printing ♦Image logo ♦Braille ♦Advertising billboard ♦Signboard ♦Packaging ♦Iron painting ♦Decorative painting ♦Toys ♦Wood board printing ♦Glass ♦Wall decoration
Specifications
| Item | UJF-7151 Plus II |
|---|---|
| Print head | 8 Pcs Toshiba Print Heads |
| Printing resolution | 1800 × 1800 dpi maximum |
| Ink Type/color | LH-100/ LUS-120 (C, M, Y, K, W, Cl, Lc, Lm)/ LUS-350 (C, M, Y, K, W, Cl)/ PR-200 (primer) |
| Media thickness | 153mm (6 in) or less |
| Interface | USB2.0/Ethernet |
| Power supply | Single phase AC100-240V, ±10%, 50/60Hz ±1Hz |
| Power consumption | 1300W or less |
| Operation environment | 20°C to 30°C (68°F to 86°F)/35 to 65% RH (No condensation) |
| RIP Software | RasterLink7 |
| External dimensions (W × D × H) | 2,203 × 1,572 × 1,293 mm 86 × 61 × 50 in |
| Weight | 330 kg / 727 lb |
| Options | UJF-7151 plusII Ionizer Option/ Kebab HS/ Kebab MkII L/ UJF-7151 plusII Full Cover Option |
