UJV100-160 Plus UV Printer
Equipped with two newly developed print heads, the UJV100-160 is a UV-curing inkjet printer that pursues high quality, high productivity, and stable operation.
- 2 Pcs Print Heads
- Max. Printing Size 1,620 mm (64 in)
- LUS210/LUS170/LUS190 Ink
Contact us for shipping, installation, tariffs and warranty..
Printing Speed
UJV100-160 Plus Printer 4C printing
| Model | Resolution | Pass | Printing Speed (m2/h） |
|---|---|---|---|
| High Speed | 360×1200dpi | 8 | 18.6 |
| Standard | 720×900dpi | 12 | 13.6 |
| Quality | 720×900dpi | 16 | 10 |
| High Quality | 1200×1200dpi | 16 | 7 |
UJV100-160 Plus Printer 4C + Spot Color printing
| Model | Resolution | Pass | Printing Speed (m2/h） |
|---|---|---|---|
| High Speed | 360×1200dpi | 8 | 9.3 |
| Standard | 720×900dpi | 12 | 6.8 |
| Quality | 720×900dpi | 16 | 5 |
| High Quality | 1200×1200dpi | 16 | 3.5 |
MIMAKI Technology

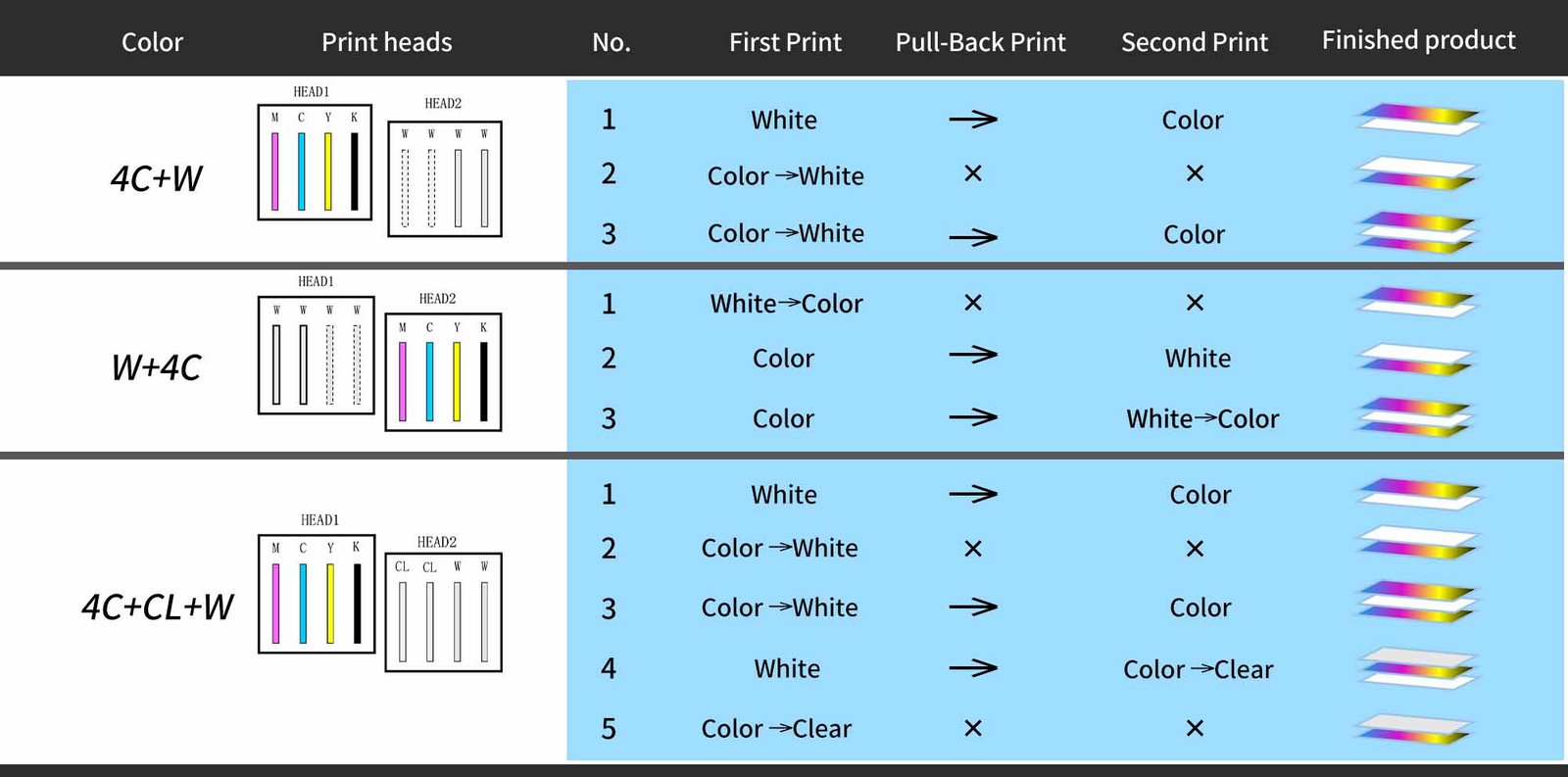

Ink Color Configuration
Benefits & Features
Professional printing, effortless.
Entry-level UV printer: Further upgraded with low power consumption and three additional features.
The UJV100-160Plus UV printer has a maximum power consumption of 0.5kW, which is approximately 20%* of the power consumption of commercially available eco-solvent and latex printers, helping printing companies reduce electricity costs and CO2 emissions.
The “UJV100-160Plus” adds three functions to the basic functions of the traditional “UJV100-160” to expand customers’ application range, reduce operating costs and improve work efficiency.
Three additional features
- Ink-saving function reduces operating costs.
- Up to three layers of printing expand the application range.
- Enhanced integration with Mimaki cutting plotters increases work efficiency.
Core Technologies:
- Waveform Control
- Mimaki Advanced Pass System
- Nozzle Check Unit
- Nozzle Recovery System
- Mimaki Circulation Technology
- Mimaki Fine Diffusion
Printing Materials:
- PET ♦Vinyl ♦PVC ♦Backlit ♦Canvas ♦Advertising ♦Wallpaper ♦Decoration
Specifications
| Item | UJV100-160 Plus |
|---|---|
| Print head | 2 Pcs Print Heads |
| Printing resolution | 360 dpi, 720 dpi, 900 dpi, 1200dpi |
| Ink Type/color | LUS-210/LUS-190/LUS-170 (C, M, Y, K, W, CL) |
| Media thickness | 1mm or less |
| Interface | USB2.0/Ethernet |
| Power supply | Single phase AC200-240V, ±10%, 12A, 50/60Hz ±1Hz |
| Power consumption | 500W or less |
| Operation environment | 20°C to 30°C (68°F to 86°F)/35 to 65% RH (No condensation) |
| RIP Software | RasterLink7 |
| External dimensions (W × D × H) | 2,775× 700 × 1,475 mm/ 109 × 28 × 58 in |
| Weight | 160 kg / 350 lb |
