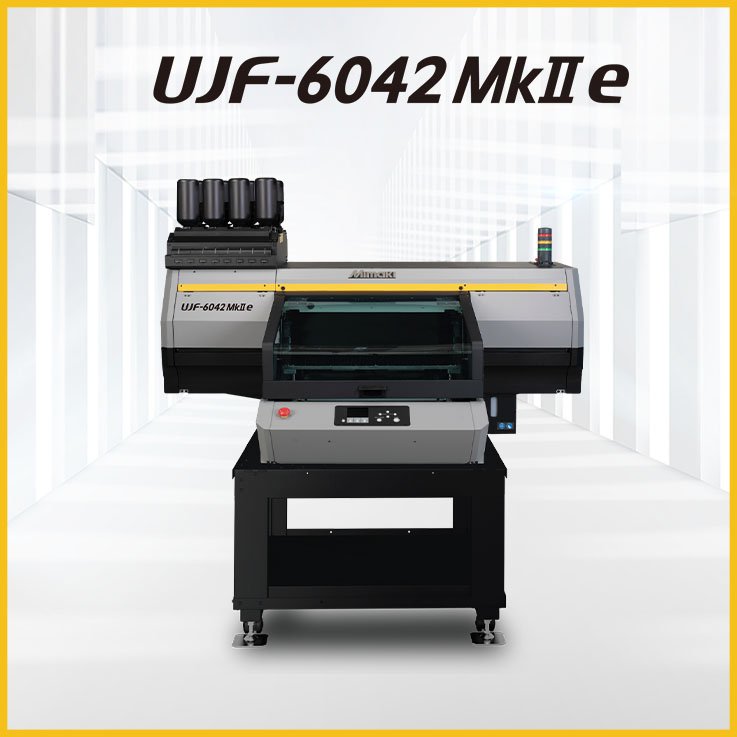

MIMAKI UJF-6042MKII e – RECOLOR PRINTER

MIMAKI UJF-6042Mk II EX e

The UJF-6042MkII e is a flatbed UV inkjet printer that further improves image quality and machine stability while retaining the highly acclaimed operability of the current model.

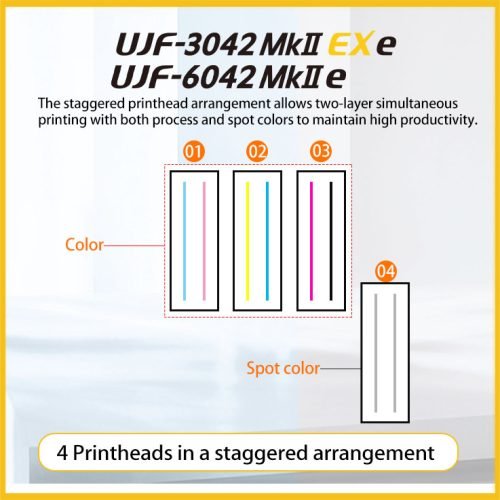

4Pcs Print Heads
Max. Printing Size 610mm×420mm
LUS120/LH100/LUS150 Ink

Contact us for shipping, installation, tariffs and warranty..

Printing Speed

4 color printing

Model	Resolution	Pass	Printing Speed (m2/h）	Printing time for one page	Hourly output (A4 paper size)
Draft	600×600dpi	8	3.52	4 min. 22 sec.	About 52 Sheets
High-speed	600×900dpi	12	2.29	6 min. 42 sec.	About 32 Sheets
Standard	600×1200dpi	16	1.74	8 min. 51 sec.	About 24 Sheets
High quality	1200×1200dpi	16	1.28	8 min. 51 sec.	About 20 Sheets

4 color + spot color printing

Model	Resolution	Pass	Printing Speed (m2/h）	Printing time for one page	Hourly output (A4 paper size)
Draft	600×600dpi	8	2.99	5 min. 08 sec.	About 44 Sheets
High-speed	600×900dpi	12	2.06	7 min. 28 sec.	About 32 Sheets
Standard	600×1200dpi	16	1.57	9 min. 46 sec.	About 24 Sheets
High quality	1200×1200dpi	16	0.96	15 min. 57 sec.	About 12 Sheets

4 color + white (High density ink mode)

Model	Resolution	Pass	Printing Speed (m2/h）	Printing time for one page	Hourly output (A4 paper size)
Draft	600×600dpi	8	2.75	5 min. 36 sec.	About 40 Sheets
High-speed	600×900dpi	12	1.86	8 min. 11 sec.	About 28 Sheets
Standard	600×1200dpi	16	1.44	10 min. 36 sec.	About 20 Sheets
High quality	1200×1200dpi	16	0.85	18 min. 09 sec.	About 12 Sheets

MIMAKI Technology

Ink Color Configuration

Benefits & Features

Powerful personalization on demand!

Designed to bring your ideas to reality, these professional tools deliver consistent quality for any level of production. You can create specialty items, awards, personalized products, component pieces and more.

Print area: 24″ x 16.5″ ; up to 6″ thick
Enclosed print area reduces dust contamination and UV exposure
Eco-friendly with low VOC, Greenguard Gold Certified UV-LED Inks
Pair with our desktop 3D printer to produce jigs, molds for thermoforming or custom molds!
Mimaki Clear Control (MCC) for smoother, cleaner clear effects
RIP Software (Rasterlink 7) and MDL included
Enhanced Auto Maintenance Features

Core Technologies:

Waveform Control
Mimaki Advanced Pass System
Nozzle Check Unit
Nozzle Recovery System
Mimaki Circulation Technology
Mimaki Fine Diffusion

Applications:

Acrylic ♦Nameplate ♦Cultural and creative ♦Membrane switch ♦Water bottle ♦Mobile phone case ♦Box printing ♦Animation peripherals (acrylic, leather) ♦Nameplate printing ♦Gift box (silver ink application) ♦Photo album ♦Acrylic display board ♦Map (high-definition printing) ♦Small print ♦Dial printing ♦Image logo ♦Braille ♦Advertising billboard ♦Signboard ♦Packaging ♦Iron painting ♦Decorative painting ♦Toys ♦Wood board printing ♦Glass ♦Wall decoration

Specifications

Item	UJF-6042MkII e
Print head	4 Pcs Toshiba Print Heads
Printing resolution	1200 × 1200 dpi maximum
Ink Type/color	LH-100/LUS120 (C, M, Y, K, W, Cl, Lc, Lm)/ LUS-150 (C, M, Y, K, W)/ PR-200 (primer)
Media thickness	153mm (6 in) or less
Interface	USB2.0/Ethernet
Power supply	Single phase AC100-240V, ±10%, 50/60Hz ±1Hz
Power consumption	1000W or less
Operation environment	20°C to 30°C (68°F to 86°F)/35 to 65% RH (No condensation)
RIP Software	RasterLink7
External dimensions (W × D × H)	1,665 × 1,290 × 856 mm 65 × 51 × 34 in
Weight	150 kg / 330 lb
Options	Installation Stand 2/ Kebab HS/ Kebab MkII L
